Pencil Modifier — plugin for Glyphs

Michael Rafailyk

Pencil Modifier

A plugin for Glyphs that enhances the Pencil tool with three features: redrawing existing paths, drawing closed paths, and drawing simplified paths.

Page on GitHub

Features

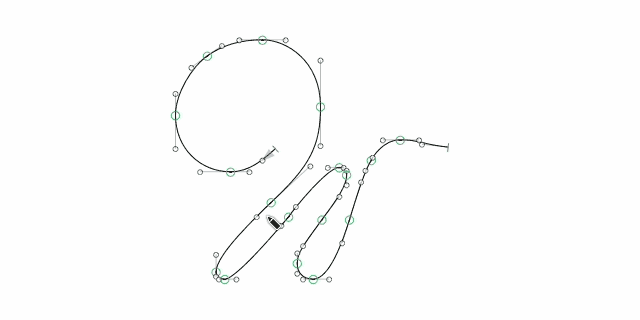

Redraw Path — hold Option ⌥ while drawing with the Pencil tool to merge drawn path with the nearest existing path, creating smooth connections where they join.

Draw Closed Path — hold Shift ⇧ while drawing with the Pencil tool to automatically close drawn path.

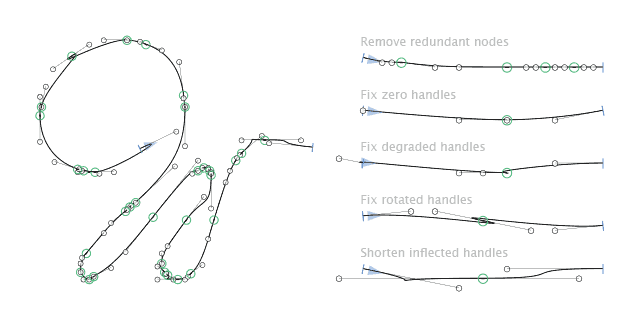

Simplify Drawn Path — drawing with the Pencil tool produces a clearer path by smoothing ripples, removing tight nodes, and fixing degraded or inflected handles.

Settings

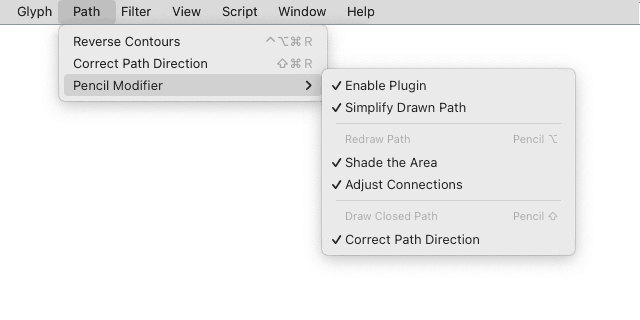

The plugin settings are located in Menu > Path > Pencil Modifier.

Project background

I was working on a font style that needed to be carefully aged manually, with each letter treated individually. The letters had to be redrawn in many places to create natural-looking scuffs, chips, and internal scratches. I started sketching them in Adobe Illustrator using the Edit Selected Paths feature. However, the redrawn outlines often came out quite noisy, with many unnecessary nodes. The paths were usually left open and sometimes had the wrong winding direction. Additionally, each letter’s outline had to be moved from Illustrator back to Glyphs, which required realignment, path closure, correction, and cleanup, and all of this had to be done for a large number of glyphs. This plugin automates all those technical steps, handling them under the hood. It has saved me weeks of time and allowed me to focus on the creative aspects instead of the technical ones. I hope it helps you too.
